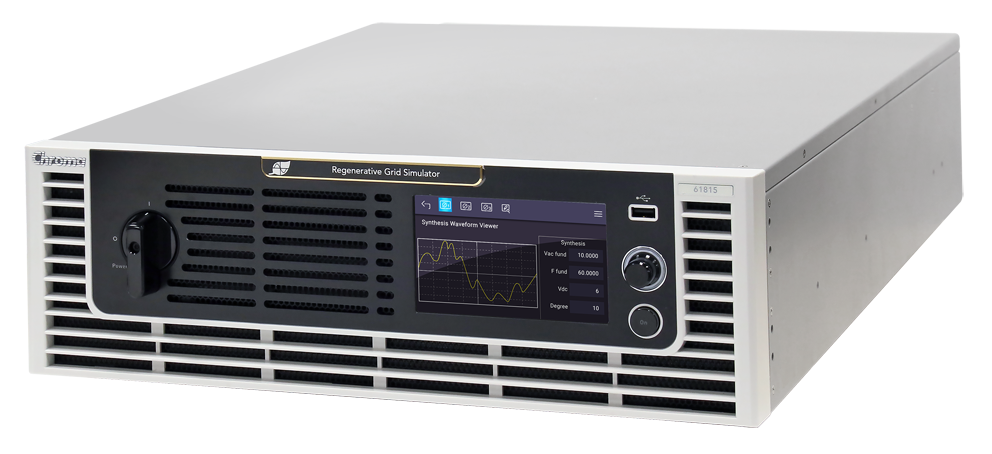

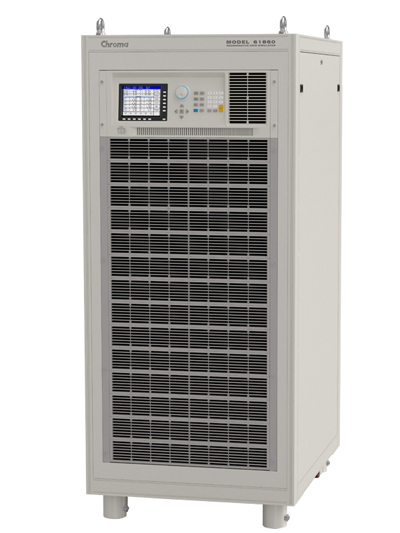

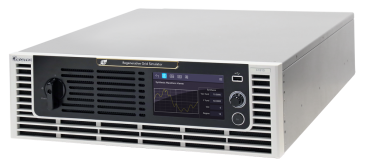

Regenerativer 4-Quadrant-Netzsimulator der Serie 61800
The new 61800 network simulators were developed to verify the fulfillment of the test requirements according to IEEE 1547 / IEC 61000-3-15 / IEC 62116; they consist of a regenerative 4-quadrant network simulator with numerous voltage waveform simulation options
Output voltage U LN: 0 - 300 V or 0 - 350 V
Output voltage U DC: 0 - 424 V or 0 - 495 V
Output frequency: DC, 30 Hz - 100 Hz
Full 4-quadrant, fully regenerative up to 100% of the output current
capacity Especially for the Testing of PV inverters and intelligent inverters developed
User-selectable single-phase or three- phase output
Programmable current rate setting for voltage and frequency
Programmable limit values for voltage and current
Phase control when switching on and off
LIST, PULSE, STAGE mode functions for testing the simulation of line faults ( PLD)
Simulation of voltage dips , short interruptions and voltage changes
Waveform synthesizer for harmonics, intermediate oscillations
Comprehensive measuring capabilities, including current harmonics
Programmable analog interfaces
Remote interface: GPIB, RS-232, USB and Ethernet
Parallel output for high-performance applications (only three phases)
AC load operation only for 61830, 61845 and 61860)
Type | Output voltage LN / DC V | Output frequency Hz | Power kVA | Number of phases |
61809 | 0 .. 350/0 .. 495 | DC, 30 .. 100 | 9 (3 / phase) | 1 or 3, configurable |
61812 | 0 .. 350/0 .. 495 | DC, 30 .. 100 | 12 (4 / phase) | 1 or 3, configurable |
61815 | 0 .. 350/0 .. 495 | DC, 30 .. 100 | 15 (5 / phase) | 1 or 3, configurable |
61830 | 0 .. 300/0 .. 424 | DC, 30 .. 100 | 30 (10 / phase) | 1 or 3, configurable |
61845 | 0 .. 300/0 .. 424 | DC, 30 .. 100 | 45 (15 / phase) | 1 or 3, configurable |
61860 | 0 .. 300/0 .. 424 | DC, 30 .. 100 | 60 (20 / phase) | 1 or 3, configurable |
61800-100 | 0 .. 300/0 .. 424 | DC, 30 .. 100 | 105 (35 / phase) | 1 or 3, configurable |
